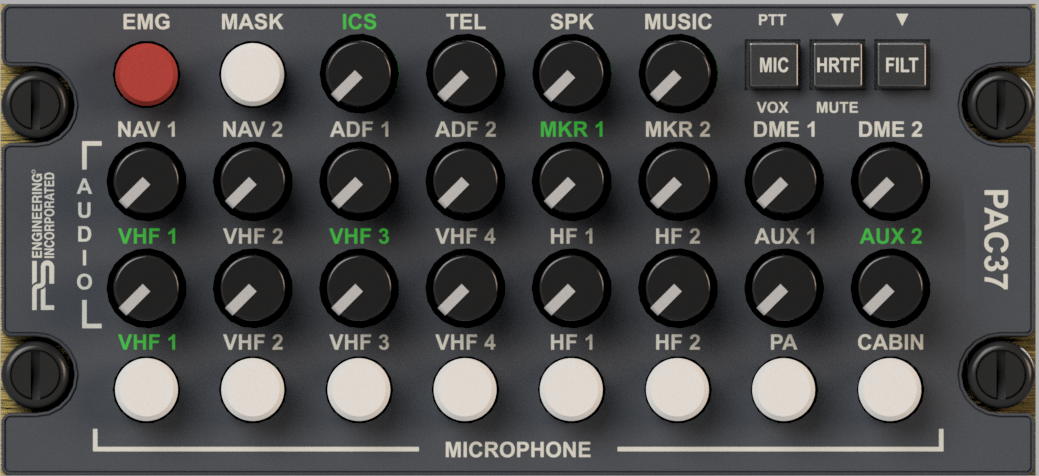

The PAC37 is PS Engineering's latest audio controller, designed specifically for seamless integration with the Baker 1045 audio panel in legacy jet aircraft. This plug-and-play device offers a straightforward upgrade for pilots and copilots, maintaining compatibility with existing systems without the need for extensive modifications. By replacing the Baker 1045 with the PAC37, operators of older jets can benefit from modern audio technology while keeping installation time and complexity to a minimum.

• Supports 3 independent control heads (pilot, copilot, and cabin)
• “Plug n play” with Baker 1045 models
• Independent volume controls for all inputs
• Independent 10-Watt amp for cockpit & PA speaker
• Front panel speaker control
• IntelliVOX® auto-squelch along with Push-to-Talk and hot mic intercom
• Front panel music selection and volume control
• Independent Bluetooth in each audio panel for cellular telephone and audio streaming
• TXI - Intercom stays active during radio transmission (field configurable)
• RXI- Com indicator flashes when audio is active (field configurable)
• Artificial Transmit Sidetone (field configurable)
• Cosmetics, either gunship gray or black
• Transmit stuck PTT disconnect (35 seconds)
• Includes custom decal & 26 pin installation kit
• PA Sidetone
• PA Speaker
• Cockpit Speaker
• CVR Audio
• External Sidetone
• Day/Night Lighting threshold
• Unswitched Audio #1 thru #5

An optional feature of the PAC37 is IntelliAudio® dimensional sound technology, designed to improve communication management for both the pilot and copilot. When enabled and properly wired, IntelliAudio® uses HRTF (Head-Related Transfer Function) to spatially position COM1 at the 10 o’clock position and COM2 at 2 o’clock, with all other COM sources centered at 12 o’clock. This allows users to perceive multiple communication sources as coming from different directions within the headset, making it easier to distinguish between channels and reducing cognitive workload.

IntelliAudio is part of a suite of optional features available on the PAC37, all of which require additional wiring during installation:

• IntelliAudio® HRTF Dimensional Sound
• Additional unswitched audio inputs
• Configurable stereo music muting (On, Off and Radio)
• Stereo intercom functionality
• Support for a third-crew jump seat
• Hardwired stereo entertainment input (e.g., XM Radio)
• ANR headset power support—no external circuit breaker required
